Reciprocating Medium Air Compressor

  Home Reciprocating Medium Air Compressor

Reciprocating Medium Air Compressor

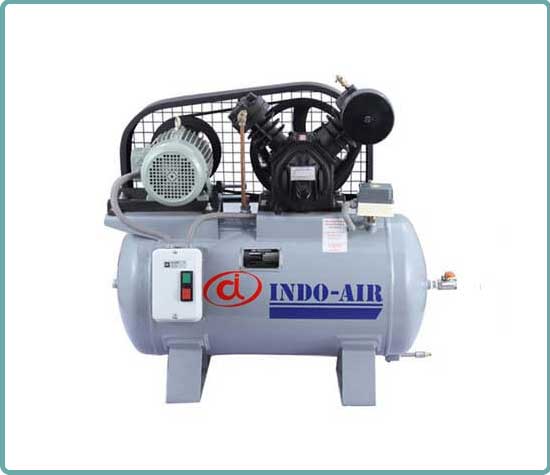

INDO-AIR Two-stage air compressors are designed for medium-pressure application and are made of heavy-duty components to give optimum performance. These compressors have two different-sized cylinder bores. Robust overhung design crankshaft for reliability and easy maintenance, solid end connecting rods, high thermal efficiency, inter-cooling, totally reliable splash lubrication, and balanced V-type construction for smooth, vibration-free operation.

services-1
Factors to consider in an Air Compressor
  • How often the compressor is used and how it is used.
  • Short list in-plant compressed air application. Make a list of equipment in the plant Consuming compressed air and expected air flow requirement in ‘CFM’ and the required pressure in ‘PSI’
  • Consider the duty cycle of your compressors as most compressors are not meant to run all the time.
  • Decide on the size/capacity of the tank. The more use of equipments means the need for larger tank. Choosing a larger tank than the need will ensure optimum use of the Compressor.
  • Consider the accessory which is to be installed with each compressor.
  • Other like maintenance, life expectancy, trouble shooting (also know the manufacture network/ regional offices), repair costs, etc.
Standard Scope of Supply for Complete Package
  • Bare compressor
  • Air Suction Filter
  • Air Receiver
  • Receiver Fittings like: Safety Valve, Pressure Gauge, Service Valve, Drain Valve, Pressure Switch / Auxiliary Valve
  • ASSC / CSC Regulation
  • V-belts & Belt Guard
  • Motor Pulley & Motor Slide Rail
  • Motor & Starter
Technical Specification
MODEL MOTOR NO. OF
CYL. 		RPM RECEIVER MAX. PRESSURE PISTON DISPL
HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR/MIN
IA 264 2.0 1.50 2 675 5.30 150 175 12.30 7.60 0.210 210
IA 264 3.0 2.20 2 960 5.30 150 175 12.30 10.80 0.305 305
IA 5340 3.0 2.20 2 1000 5.30 150 175 12.30 11.25 0.318 318
IA 272 5.0 3.70 2 865 7.95 225 175 12.30 17.32 0.490 490
IA 272 7.5 5.50 2 1000 7.95 225 175 12.30 20.00 0.570 570
IA 5475 5.0  3.70  2 950 7.95  225 175 12.30  18.98  0.537  537
IA 5475 7.5 5.50 2 1100 7.95 225 175 12.30 22.00 0.622 622
IA 283 7.5 5.50 2 660 8.83 250 175 12.30 26.23 0.740 740
IA 283 10.0 7.50 2 660 8.83 250 250 17.50 26.23 0.740 740
IA 5545 7.5 5.50 2 750 8.83 250 175 12.30 29.81 0.843 843
IA 5545 10.0 7.50 2 950 8.83 250 175 12.30 37.80 1.070 1070
IA 101T2 10.0 7.50 2 725 10.60 300 175 12.30 40.00 1.130 1130
IA 101T2 12.5 9.30 2 900 10.60 300 175 12.30 49.50 1.400 1400
IA 101T2 12.5 9.30 2 800 10.60 300 250 17.50 44.00 1.245 1245
IA 101T2 15.0 11.00 2 1000 10.60 300 175 12.30 55.00 1.560 1560
IA 45T 15.0 11.00 3 700 17.66 500 175 12.30 63.50 1.800 1800
IA 45T 20.0 15.00 3 900 17.66 500 175 12.30 81.80 2.310 2310
IA 55T2 25.0 18.50 3 800 17.66 500 250 17.50 87.94 2.490 2490
IA 55T2 25.0 18.50 3 900 17.66 500 175 12.30 99.00 2.800 2800
IA 55T2 30.0 22.00 3 1000 17.66 500 175 12.30 110.00 3.100 3100
